SSD ACC ADAPTER NVME/SATA/M.2/SP&LP PCEM2-D AXAGON

Prekės kodas: 1438812

Turimas kiekis: 5

Included Accessories • PCI-Express adapter with a standard bracket,• low profile bracket,• 2 pcs. thermally conductive pads,• SATA data cable 50 cm long,• mounting material and a screwdriver
€1044 su PVM
Turite klausimų apie šią prekę? Klauskite
Garantija: 24
Gamintojas: AXAGON
Techninė informacija
Category Code HDA
Dimensions 142 x 64 x 12 mm
Full Description Line Included Accessories • PCI-Express adapter with a standard bracket,• low profile bracket,• 2 pcs. thermally conductive pads,• SATA data cable 50 cm long,• mounting material and a screwdriver
Included Accessories • PCI-Express adapter with a standard bracket,• low profile bracket,• 2 pcs. thermally conductive pads,• SATA data cable 50 cm long,• mounting material and a screwdriver
Model PCEM2-D
Shipping Box Depth 3
Shipping Box Height 17
Shipping Box Weight 0.13
Shipping Box Width 13
Unit Box Height 0.17
Unit Box Length 0.03
Unit Box Width 0.13
Vendor Homepage www.axagon.eu/en/produkty/pcem2-d?ami=204

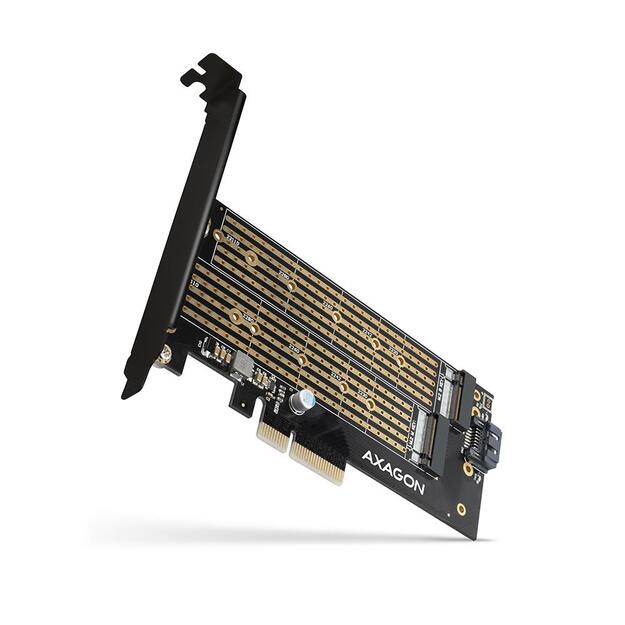

PCEM2-D PCIe NVMe+SATA M.2 adapter

A PCI-Express x4 adapter to connect up to two M.2 disks to a computer. 1x NVMe M-key + 1x SATA B-key.

The internal AXAGON PCEM2-D adapter allows to connect as many as two M.2 SSD to a desktop. So, it is an ideal choice for upgrading a desktop computer that has no M.2 slot.

The adapter supports the use of both one-sided and double-sided SATA and NVMe (PCI-Express) M.2 SSDs. The reduction does not limit SSD capacity, and any M.2 cards with a length up to 110 mm can be used. The simultaneous operation of both disks is commonplace.

Thanks to PCI-Express interface compatible with x4, x8 and x16 slots, a maximum transmission rates can be achieved. When compared to standard SATA SSDs, bit rates of NVMe SSDs are many times higher.

The high quality card design, including copper-plated vents, assists in a better dissipation of heat generated during the M.2 SSDs operation.

Double LEDs indicate either power on or data transfer in the M.2 slot.

The package also contains a low profile bracket for mounting the adapter into low profile cases.
