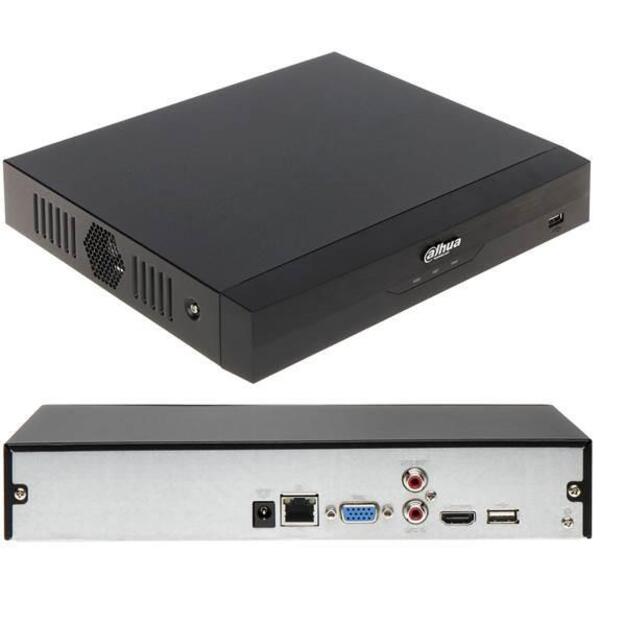

NET VIDEO RECORDER 4CH/NVR4104HS-EI DAHUA
NET VIDEO RECORDER 4CH/NVR4104HS-EI DAHUA
Channels 4 | Drives/bays 1 | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 2xUSB 2.0 | 1xRJ45 | Power supply requirements 12 VDC, 2 A | Power consumption 10 Watts | Dim. 260 mm × 232.7 mm × 47.6 mm | Temp. range –10 °C to +55 °C
| Garantija: |
36 |
| Gamintojas: |
DAHUA |
| Techninė informacija |
| 15pin D-sub |
1 |
| Audio-In |
1 |
| Audio-Out |
1 |
| Category Code |
NVR |
| Dimensions |
260 mm × 232.7 mm × 47.6 mm |
| HDMI |
1 |
| Model |
NVR4104HS-EI |
| Number of drives/bays |
1 |
| Operating temperature range |
–10 °C to +55 °C |
| Power consumption |
10 |
| Power supply requirements |
12 VDC, 2 A |
| RJ45 |
1 |
| USB 2.0 |
2 |
| Unit Box Height |
0.31 |
| Unit Box Length |
0.335 |
| Unit Box Width |
0.085 |
| Vendor Homepage |
www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/1-HDD/NVR4104HS-EI |
- 4 IP channel max, up to 16MP resolution
- Max: 80Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps
- 1 SATA III port, up to 16 TB for a single HDD
- No front panel control, no alarm I/O, 2 USB, Two-way Talk: 1/1
- Desktop mounted chassis
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.
- Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
- Other brands IP cameras supported
