Prekės kodas: 1426844
Turimas kiekis: 19
| Garantija: | 36 |
| Gamintojas: | GIGABYTE |
| Techninė informacija | |
| 15pin D-sub | 1 |
| Audio port | 3 |
| Category Code | MBI |
| Chipset | Intel H610 |
| Form Factor | Micro-ATX |
| Frequency speed | 2133/2400/2666/2933/3000/3200 |
| HDMI | 1 |
| Integrated LAN | Gigabit |
| Integrated audio | Yes |
| Integrated video | Depending on CPU |
| M.2 | 1 |
| Memory slots | 2 |
| Memory type | DDR4 |
| Model | H610M H V3 DDR4 |
| PCI-Express 3.0 1x | 1 |
| PCI-Express 4.0 16x | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| SATA | Yes |
| Serial | Yes |
| Socket | LGA1700 |
| TPM | Header |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.265 |
| Unit Box Width | 0.235 |
| Vendor Homepage | www.gigabyte.com/Motherboard/H610M-H-V3-DDR4-rev-10#kf |

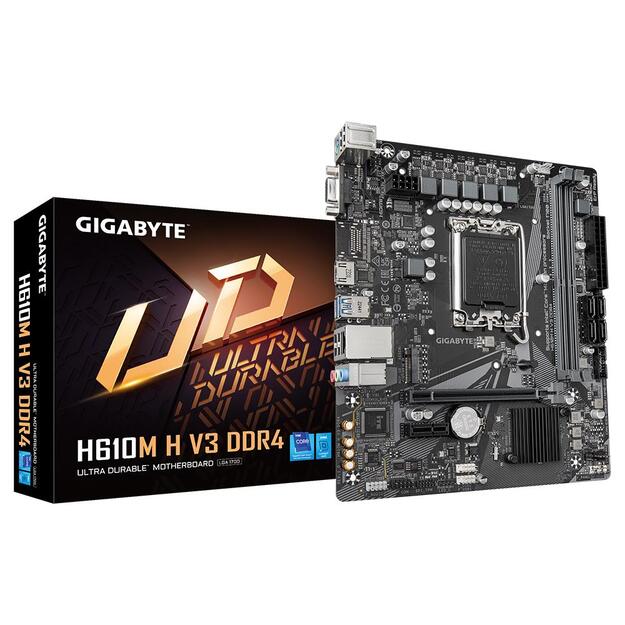

GIGABYTE H610M H V3 DDR4 (rev. 1.0)
Intel H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6
+ Supports Intel Core 14th/ 13th /12th processors
+ Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
+ 4+1+1 Hybrid Digital VRM Design
+ GbE LAN with Bandwidth Management
+ NVMe PCIe 3.0 x4 M.2
+ High Quality Audio Capacitors and Audio Noise Guard
+ Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
+ GIGABYTE APP Center, Simple and Easy Use
+ Anti-Sulfur Resistors Design
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
