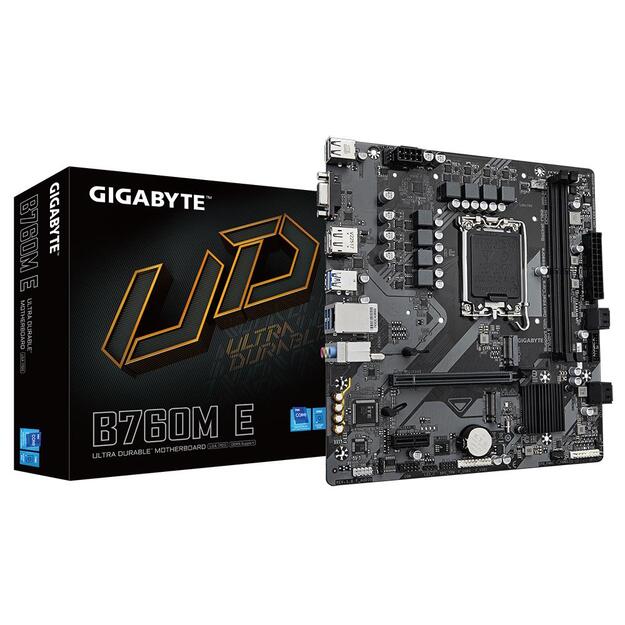

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|B760ME1.0
Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|B760ME1.0
Intel B760 Express | LGA1700 | Micro-ATX | DDR5 | 7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4400 MHz | Memory slots 2 | Video Depending on CPU | LAN Gigabit | Audio | RAID SATA 0, 1, 5, 10 | TPM Header
| Garantija: |
36 |
| Gamintojas: |
GIGABYTE |
| Techninė informacija |
| 15pin D-sub |
1 |
| Audio port |
3 |
| Category Code |
MBI |
| Chipset |
Intel B760 Express |
| DisplayPort |
1 |
| Form Factor |
Micro-ATX |
| Frequency speed |
4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 |
| HDMI |
1 |
| Integrated LAN |
Gigabit |
| Integrated audio |
Yes |
| Integrated video |
Depending on CPU |
| M.2 |
2 |
| Memory slots |
2 |
| Memory type |
DDR5 |
| Model |
B760M E 1.0 |
| PCI-Express 3.0 1x |
1 |
| PCI-Express 4.0 16x |
1 |
| RAID |
SATA 0, 1, 5, 10 |
| RJ45 |
1 |
| SATA |
Yes |
| Socket |
LGA1700 |
| TPM |
Header |
| USB 2.0 |
2 |
| USB 3.2 |
4 |
| Unit Box Height |
0.055 |
| Unit Box Length |
0.27 |
| Unit Box Width |
0.265 |
| Vendor Homepage |
www.gigabyte.com/Motherboard/B760M-E-rev-10 |
B760M E (rev. 1.0)
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：2*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：Display Port, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
