Prekės kodas: 1424631
Turimas kiekis: 7
| Garantija: | 36 |
| Gamintojas: | GIGABYTE |
| Techninė informacija | |
| Audio port | 2 |
| Bluetooth | Yes |
| Category Code | MBA |
| Chipset | AMD X870E |
| Form Factor | ATX |
| Frequency speed | 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200/8400/8600 |
| HDMI | 1 |
| Integrated LAN | 5 Gigabit |
| Integrated audio | Realtek ALC1220 |
| Integrated video | Depending on CPU |
| M.2 | 4 |
| Memory slots | 4 |
| Memory type | DDR5 |
| Model | X870E AORUS MASTER |
| Optical S/PDIF | 1 |
| PCI-Express 3.0 4x | 1 |
| PCI-Express 4.0 4x | 1 |
| PCI-Express 5.0 16x | 1 |
| RAID | SATA 0, 1, 10; NVMe 0, 1, 5, 10 |
| RJ45 | 1 |
| SATA | Yes |
| Socket | SAM5 |
| TPM | Header |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| USB-C | Yes |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.35 |
| Unit Box Width | 0.295 |
| Vendor Homepage | www.gigabyte.com/Motherboard/X870E-AORUS-MASTER#kf |
| WiFi | Yes |

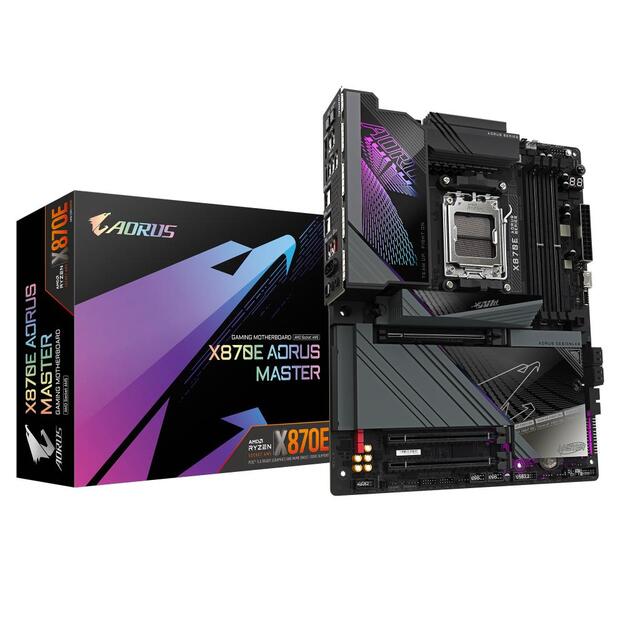

GIGABYTE X870E AORUS MASTER
DDR5 OC
up to 8600MT/s
AMD Socket AM5
Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin
16+2+2 phases VRM solution
Dual Channel DDR5
4*DIMMs with AMD EXPO™Memory Module Support
DDR Wind Blade
Enhanced Active Cooling for Memory Modules
M.2 EZ-Match
Magnetic alignment for easy installation of large heatsinks
WIFI EZ-Plug
Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus
PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click
M.2 heatsinks with screwless design
Sensor Panel Link
Onboard video port for hassle-free in-chassis panel setup
Friendly UI
Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
New Power Monitor in HWinfo
for real-time monitoring on CPU power phases
Ultra-Fast Storage
4*M.2 slots, including 3* PCIe 5.0 x4
Efficient Thermal
VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL
Fast Networking
5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity
Dual USB4 Type-C with DP-Alt, HDMI
Reliable Audio
Realtek ALC1220 HD Audio & WIMA Audiophile Grade Capacitors
Ultra Durable PCIe Armor
The metal back plate of PCIe x16 slot for enhanced durability.
PCIe UD Slot X
PCIe 5.0 x16 slot with 10X strength for graphics card
