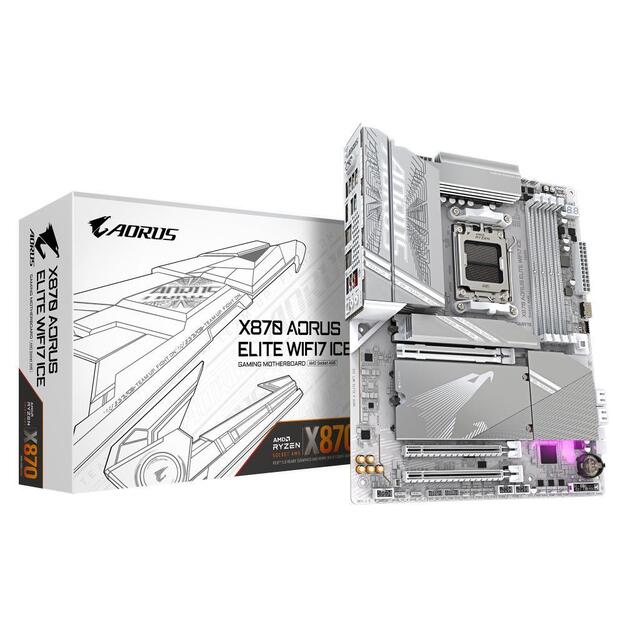

  3. Mainboard|GIGABYTE|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 2x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xHDMI|4xUSB 2.0|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|X870AELITEWF7ICE1.1

Mainboard|GIGABYTE|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 2x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xHDMI|4xUSB 2.0|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|X870AELITEWF7ICE1.1

Prekės kodas: 1430582

Turimas kiekis: 2

AMD X870E | SAM5 | ATX | DDR5 | 8000/7800/7600/7200/7000/6800/6666/6600/6400/6200/6000/5600/5200/4800/4400 MHz | Memory slots 4 | 1xPCI-Express 3.0 2x | 1xPCI-Express 4.0 4x | 1xPCI-Express 5.0 16x | 4xM.2 | 1xHDMI | 4xUSB 2.0 | 6xUSB 3.2 | 2xUSB-C | 1xOptical S/PDIF | 1xRJ45 | 2xAudio port | SATA | USB-C | USB 2.0 | USB 3.2 | Bluetooth | WiFi | Video Depending on CPU | Audio Realtek ALC1220 | LAN 2.5 Gigabit | RAID SATA 0, 1, 10 NVMe 0, 1, 5, 10 | TPM Header
€27077 su PVM
Turite klausimų apie šią prekę? Klauskite
Garantija: 36
Gamintojas: GIGABYTE
Techninė informacija
Audio port 2
Bluetooth Yes
Category Code MBA
Chipset AMD X870E
Form Factor ATX
Frequency speed 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000
HDMI 1
Integrated LAN 2.5 Gigabit
Integrated audio Realtek ALC1220
Integrated video Depending on CPU
M.2 4
Memory slots 4
Memory type DDR5
Model X870 AORUS ELITE WIFI7 ICE
Optical S/PDIF 1
PCI-Express 3.0 2x 1
PCI-Express 4.0 4x 1
PCI-Express 5.0 16x 1
RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10
RJ45 1
SATA Yes
Socket SAM5
TPM Header
USB 2.0 Yes
USB 3.2 Yes
USB-C Yes
Unit Box Height 0.38
Unit Box Length 0.45
Unit Box Width 0.31
Vendor Homepage www.gigabyte.com/Motherboard/X870-AORUS-ELITE-WIFI7-ICE#kf
WiFi Yes

X870 AORUS ELITE WIFI7 ICE
Key Features

  • AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click：M.2 heatsinks with screwless design
  • Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
  • Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
  • Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
  • Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
  • Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
  • PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
