Prekės kodas: 1426850
Turimas kiekis: 30
| Garantija: | 36 |
| Gamintojas: | GIGABYTE |
| Techninė informacija | |
| 15pin D-sub | 1 |
| AV-In | 2 |
| AV-out | 1 |
| Category Code | MBA |
| Chipset | AMD A520 |
| DVI-D | 1 |
| Form Factor | Micro-ATX |
| Frequency speed | 2133/2400/2666/2933/3200/3333/3600/4000/4400/4600/4866/5000/5100 |
| HDMI | 1 |
| Integrated LAN | Realtek (Gigabit) |
| Integrated audio | Realtek ALC887 |
| Integrated video | Depending on CPU |
| M.2 | 1 |
| Memory slots | 2 |
| Memory type | DDR4 |
| Model | A520M S2H 1.3 |
| PCI-Express 3.0 16x | 1 |
| PCI-Express 3.0 1x | 2 |
| PS/2 | 1 |
| RAID | SATA 0, 1, 10 |
| RJ45 | 1 |
| SATA | Yes |
| Socket | SAM4 |
| TPM | Header |
| USB 2.0 | 2 |
| USB 3.2 | 4 |
| Unit Box Height | 0.235 |
| Unit Box Length | 0.265 |
| Unit Box Width | 0.05 |
| Vendor Homepage | www.gigabyte.com/Motherboard/A520M-S2H-rev-10#kf |

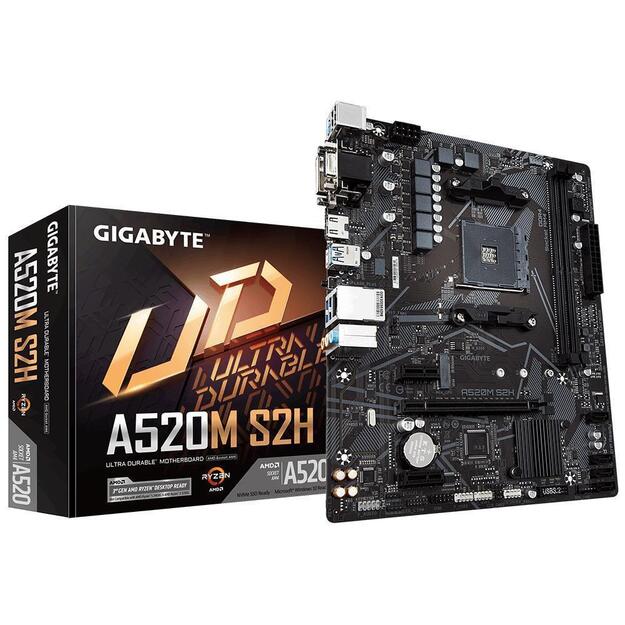

GIGABYTE A520M S2H 1.3
AMD A520 Ultra Durable Motherboard with Pure Digital VRM Solution, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Anti-Sulfur Resistors Design
+ Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
+ Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
+ 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
+ Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
+ GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
+ HDMI, DVI-D, D-sub Ports for Multiple Display
+ RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
+ Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
+ Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
+ Anti-Sulfur Resistors Design
