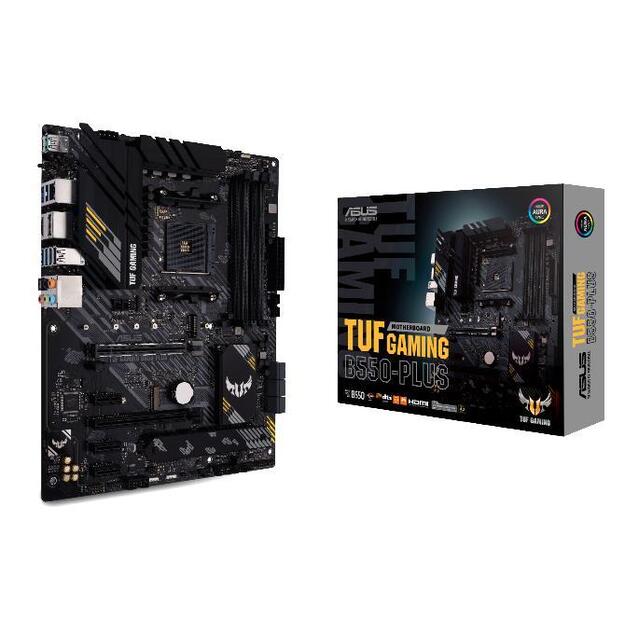

Mainboard|ASUS|AMD B550|SAM4|ATX|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|2xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 4|1xHDMI|1xDisplayPort|1xUSB type C|5xUSB 3.2|1xOptical S/PDIF|1xRJ45|5xAudio port|TUFGAMINGB550-PLUS
Mainboard|ASUS|AMD B550|SAM4|ATX|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|2xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 4|1xHDMI|1xDisplayPort|1xUSB type C|5xUSB 3.2|1xOptical S/PDIF|1xRJ45|5xAudio port|TUFGAMINGB550-PLUS
AMD B550 | SAM4 | ATX | DDR4 | 4800/4600/4400/4266/4133/4000/3866/3733/3600/3466/3333/3200/3000/2800/2666/2400/2133 MHz | Memory slots 4 | 3xPCI-Express 3.0 1x | 1xPCI-Express 3.0 16x | 1xPCI-Express 4.0 16x | 2xM.2 | 1xHDMI | 1xDisplayPort | 5xUSB 3.2 | 1xUSB-C | 1xOptical S/PDIF | 1xRJ45 | 5xAudio port | USB 2.0 | USB 3.2 | Serial | SATA 3.0 | Video Depending on CPU | Audio | LAN Gigabit | RAID SATA 0, 1, 10
| Garantija: |
36 |
| Gamintojas: |
ASUS |
| Techninė informacija |
| Audio port |
5 |
| Category Code |
MBA |
| Chipset |
AMD B550 |
| DisplayPort |
1 |
| Form Factor |
ATX |
| Frequency speed |
2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4600/4800 |
| HDMI |
1 |
| Included Accessories |
User's manual;I/O Shield;2 x SATA 6Gb/s cable(s);Supporting DVD;TUF Gaming Sticker;TUF Certification card(s);M.2 SSD screw package(s);M.2 Rubber Package(s) |
| Integrated LAN |
Gigabit |
| Integrated audio |
Yes |
| Integrated video |
Depending on CPU |
| M.2 |
2 |
| Memory slots |
4 |
| Memory type |
DDR4 |
| Optical S/PDIF |
1 |
| PCI-Express 3.0 16x |
1 |
| PCI-Express 3.0 1x |
3 |
| PCI-Express 4.0 16x |
1 |
| RAID |
SATA 0, 1, 10 |
| RJ45 |
1 |
| SATA 3.0 |
Yes |
| Serial |
Yes |
| Socket |
SAM4 |
| USB 2.0 |
Yes |
| USB 3.2 |
Yes |
| USB-C |
1 |
| Unit Box Height |
0.07 |
| Unit Box Length |
0.34 |
| Unit Box Width |
0.27 |
| Vendor Homepage |
www.asus.com/Motherboards/TUF-GAMING-B550-PLUS/ |
AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
- Made for online gaming: 2.5 Gb Ethernet, M.2 slot (Key E) for Wi-Fi module, TUF LANGuard, and Turbo LAN technology
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- AI noise-canceling microphone: provides crystal-clear in-game voice communication
