DETECTOR SMOKE FIRE TEMP./TSD-1 SATEL

Prekės kodas: 1138565

Turimas kiekis: 4

Detector Type Fire/Special | Operating temperature range -10 C+55 C | Power supply requirements 12 V DC | Current drain 24 mA | Dimensions 108 x 61 mm
€3423 su PVM
Turite klausimų apie šią prekę? Klauskite
Garantija: 36
Gamintojas: SATEL
Techninė informacija
Category Code MDE
Current drain 24
Detector Type Fire/Special
Dimensions 108 x 61 mm
Full Description Line Detector Type Fire/Special|Operating temperature range -10 C+55 C|Power supply requirements 12 V DC|Current drain 24 mA|Dimensions 108 x 61 mm
Operating temperature range -10 C+55 C
Power supply requirements 12 V DC
Shipping Box Depth 12
Shipping Box Height 7
Shipping Box Weight 0.2
Shipping Box Width 12
Unit Box Height 0.07
Unit Box Length 0.12
Unit Box Width 0.12
Vendor Homepage http://www.satel.pl/en/produktid/466

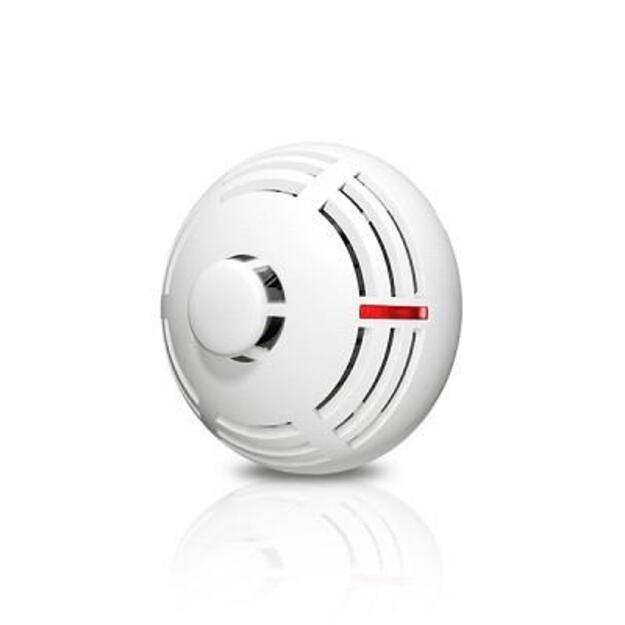

The TSD-1 is a point detector designed to detect the early stages of a developing fire. For this purpose, it is equipped with a photoelectric sensor of visible smoke, as well as rate of rise temperature sensor. The unique design of the measuring chamber provides high sensitivity and omni-directionality, while a precise Hexamesh stainless steel filter protects the chamber from ingress of contamination and small insects. Detector configuration with DIP-switches and built-in parametric end of line resistors facilitate connection of the detector to virtually any control panel with a 12V power supply.
- unique Swirl chamber for increased smoke sensitivity
- EN54-7 compliant smoke detection
- EN54-5 compliant heat detection
- selectable operating mode (smoke, heat, multisensor)
- line type configuration (NO/NC/2EOL) with DIP switches
- precision stainless steel Hexamesh filter
- smoke chamber dirt build-up indicator
- easy installation with detachable base
- compatible with all 12V alarm panels
