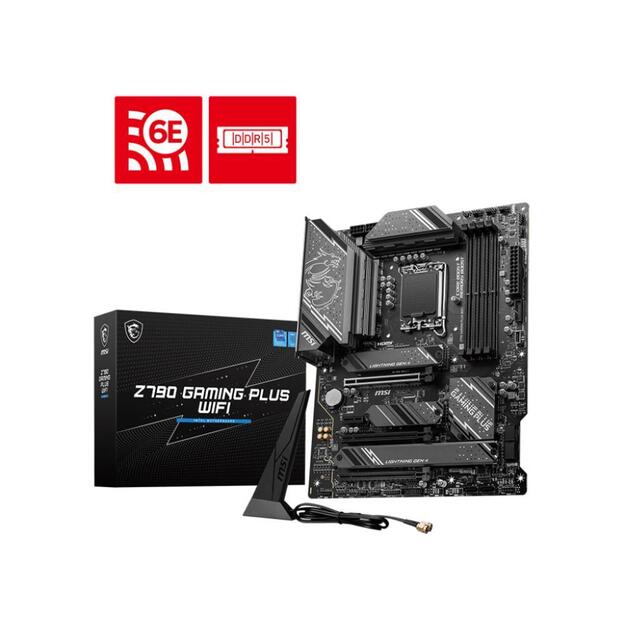

Mainboard|MSI|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|6xAudio port|Z790GAMINGPLUSWIFI
Mainboard|MSI|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|6xAudio port|Z790GAMINGPLUSWIFI
Intel Z790 | LGA1700 | ATX | DDR5 | 7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz | Memory slots 4 | 1xPCI-Express 1x | 3xPCI-Express 16x | 4xM.2 | 1xHDMI | 1xDisplayPort | 4xUSB 2.0 | 3xUSB 3.2 | 1xUSB-C | 1xPS/2 | 6xAudio port | SATA | USB 2.0 | USB 3.2 | Bluetooth | WiFi | Video Depending on CPU | LAN 2.5 Gigabit | Audio Realtek ALC897 | RAID SATA 0, 1, 5, 10 NVMe 0, 1, 5, 10 | TPM Header
| Garantija: |
36 |
| Gamintojas: |
MSI |
| Techninė informacija |
| Audio port |
6 |
| Bluetooth |
Yes |
| Category Code |
MBI |
| Chipset |
Intel Z790 |
| DisplayPort |
1 |
| Form Factor |
ATX |
| Frequency speed |
4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 |
| HDMI |
1 |
| Integrated LAN |
2.5 Gigabit |
| Integrated audio |
Realtek ALC897 |
| Integrated video |
Depending on CPU |
| M.2 |
4 |
| Memory slots |
4 |
| Memory type |
DDR5 |
| Model |
Z790 GAMING PLUS WIFI |
| PCI-Express 16x |
3 |
| PCI-Express 1x |
1 |
| PS/2 |
1 |
| RAID |
SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 |
| SATA |
Yes |
| Socket |
LGA1700 |
| TPM |
Header |
| USB 2.0 |
Yes |
| USB 3.2 |
Yes |
| USB-C |
1 |
| Unit Box Height |
0.07 |
| Unit Box Length |
0.345 |
| Unit Box Width |
0.27 |
| Vendor Homepage |
www.msi.com/Motherboard/Z790-GAMING-PLUS-WIFI |
| WiFi |
Yes |
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
