Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|1xUSB 3.2|1xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|3xAudio port|B760MGPWIFIDDR41.0
Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|1xUSB 3.2|1xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|3xAudio port|B760MGPWIFIDDR41.0
Intel B760 Express | LGA1700 | Micro-ATX | DDR4 | 5333/5133/5000/4933/4800/4700/4600/4500/4400/4300/4266/4133/4000/3866/3800/3733/3666/3600/3466/3400/3333/3300/3200/3000/2933/2666/2400/2133 MHz | Memory slots 4 | 2xPCI-Express 3.0 1x | 1xPCI-Express 4.0 16x | 2xM.2 | 1xHDMI | 1xDisplayPort | 2xUSB 2.0 | 1xUSB 3.2 | 1xUSB-C | 1xPS/2 | 1xOptical S/PDIF | 1xRJ45 | 3xAudio port | SATA | USB-C | USB 2.0 | USB 3.2 | Bluetooth | WiFi | PS/2 | Video Depending on CPU | LAN Realtek (Gigabit) | Audio | RAID SATA 0, 1, 5, 10 | TPM Header
| Garantija: |
36 |
| Gamintojas: |
GIGABYTE |
| Techninė informacija |
| Audio port |
3 |
| Bluetooth |
Yes |
| Category Code |
MBI |
| Chipset |
Intel B760 Express |
| DisplayPort |
1 |
| Form Factor |
Micro-ATX |
| Frequency speed |
2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 |
| HDMI |
1 |
| Integrated LAN |
Realtek (Gigabit) |
| Integrated audio |
Yes |
| Integrated video |
Depending on CPU |
| M.2 |
2 |
| Memory slots |
4 |
| Memory type |
DDR4 |
| Model |
B760M G P WIFI DDR4 |
| Optical S/PDIF |
1 |
| PCI-Express 3.0 1x |
2 |
| PCI-Express 4.0 16x |
1 |
| PS/2 |
Yes |
| RAID |
SATA 0, 1, 5, 10 |
| RJ45 |
1 |
| SATA |
Yes |
| Socket |
LGA1700 |
| TPM |
Header |
| USB 2.0 |
Yes |
| USB 3.2 |
Yes |
| USB-C |
Yes |
| Unit Box Height |
0.27 |
| Unit Box Length |
0.27 |
| Unit Box Width |
0.07 |
| Vendor Homepage |
www.gigabyte.com/Motherboard/B760M-GAMING-PLUS-WIFI-DDR4#kf |
| WiFi |
Yes |

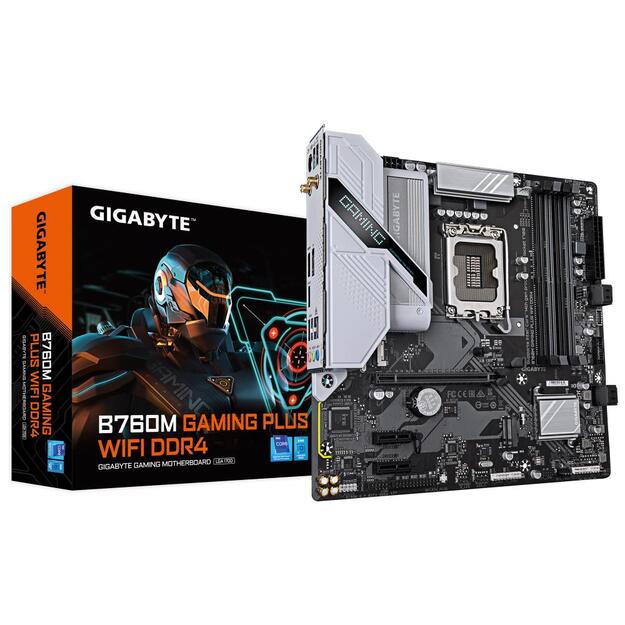

B760M GAMING PLUS WIFI DDR4
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Fast Networks：Wi-Fi 6 802.11ax, GbE LAN
- Extended Connectivity：Front USB-C® 5Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
