Pagrindinis
-
Pagrindinės plokštės skirtos Intel CPUs
-

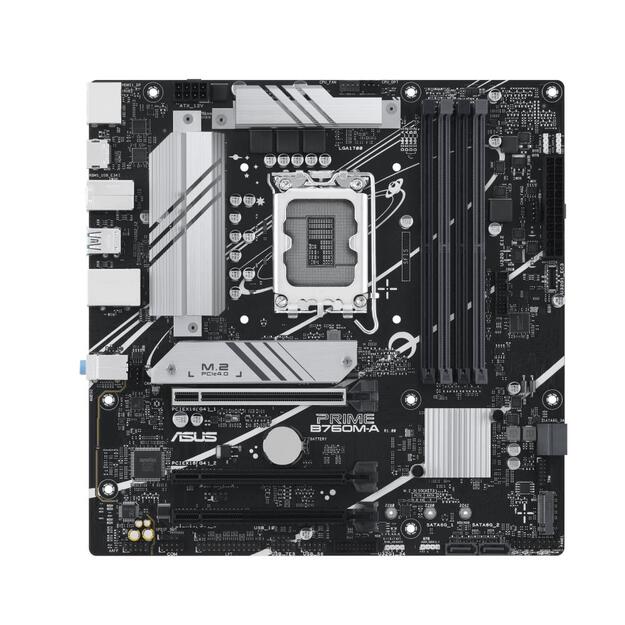

Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xHDMI|2xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|PRIMEB760M-A-CSM
Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xHDMI|2xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|PRIMEB760M-A-CSM
Intel B760 Express | LGA1700 | Micro-ATX | DDR5 | 7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz | Memory slots 4 | 2xPCI-Express 4.0 16x | 2xM.2 | 1xHDMI | 2xDisplayPort | 4xUSB 2.0 | 2xUSB 3.2 | 1xPS/2 | 1xRJ45 | 3xAudio port | SATA | USB 2.0 | USB 3.2 | Video Depending on CPU | LAN 2.5 Gigabit | Audio | RAID SATA 0, 1, 5, 10
| Garantija: |
36 |
| Gamintojas: |
ASUS |
| Techninė informacija |
| Audio port |
3 |
| Category Code |
MBI |
| Chipset |
Intel B760 Express |
| DisplayPort |
2 |
| Form Factor |
Micro-ATX |
| Frequency speed |
4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000 |
| HDMI |
1 |
| Included Accessories |
Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 Rubber Package1 x Screw package for M.2 SSDDocumentation1 x ACC Express Activation Key Card1 x User guide |
| Integrated LAN |
2.5 Gigabit |
| Integrated audio |
Yes |
| Integrated video |
Depending on CPU |
| M.2 |
2 |
| Memory slots |
4 |
| Memory type |
DDR5 |
| Model |
PRIME B760M-A-CSM |
| PCI-Express 4.0 16x |
2 |
| PS/2 |
1 |
| RAID |
SATA 0, 1, 5, 10 |
| RJ45 |
1 |
| SATA |
Yes |
| Socket |
LGA1700 |
| USB 2.0 |
Yes |
| USB 3.2 |
Yes |
| Unit Box Height |
0.053 |
| Unit Box Length |
0.273 |
| Unit Box Width |
0.264 |
| Vendor Homepage |
www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-csm/ |
Intel® B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
